Fans & Blowers

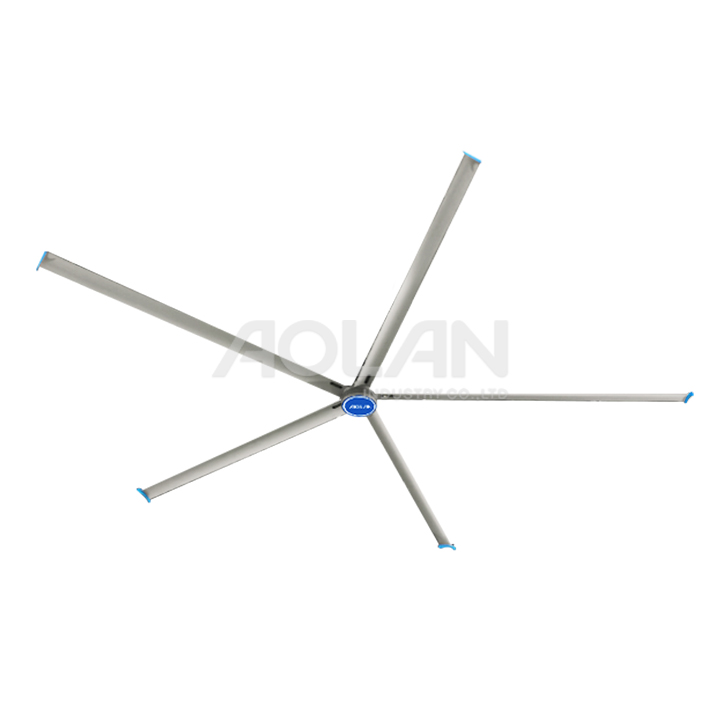

HVLS Fan

High-volume, low-speed fans for large spaces. A permanent-magnet external-rotor motor drives aviation aluminium-magnesium blades to move huge volumes of air slowly — the 7.3 m model covers over 1,700 m² at more than 1.0 m/s. Pairs with an evaporative cooler for summer cooling.

Applications

  • Logistics warehouses and distribution centers
  • Large workshops
  • Malls, auditoriums, airports and stations
  • Large farms, feedlots and hatcheries

Features

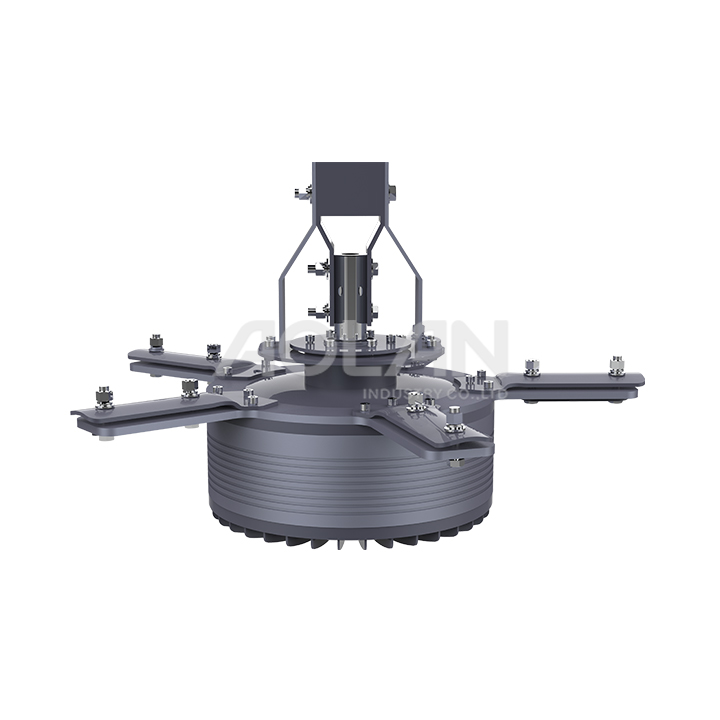

  • PMSM motor replaces motor + reducer: saves energy, fewer failures
  • Group control and IoT remote monitoring
  • Fault light, emergency stop and lockable control box
  • IP55 motor and control box
  • Fall-safe design for shaft or bearing failure
  • Mounts on cement beam, I-beam or square steel

Specifications

ParameterAL-HVLS-380-7300AL-HVLS-380-5000
Blade diameter7.3 m5.0 m
Blades65
Input voltage110/220/380 V110/220/380 V
Speed15–55 r/min20–80 r/min
Max airflow15,500 m³/h10,000 m³/h
Full-load power1.5 kW0.75 kW
Coverage1,700 m²750 m²
Max noise38 dB(A)38 dB(A)
Total weight122 kg49 kg

Other blade diameters are available on request.

How it works

HVLS Fan diagram
HVLS Fan diagram
HVLS Fan diagram
