Evaporative Cooling Media
Wet Film Humidifying Media

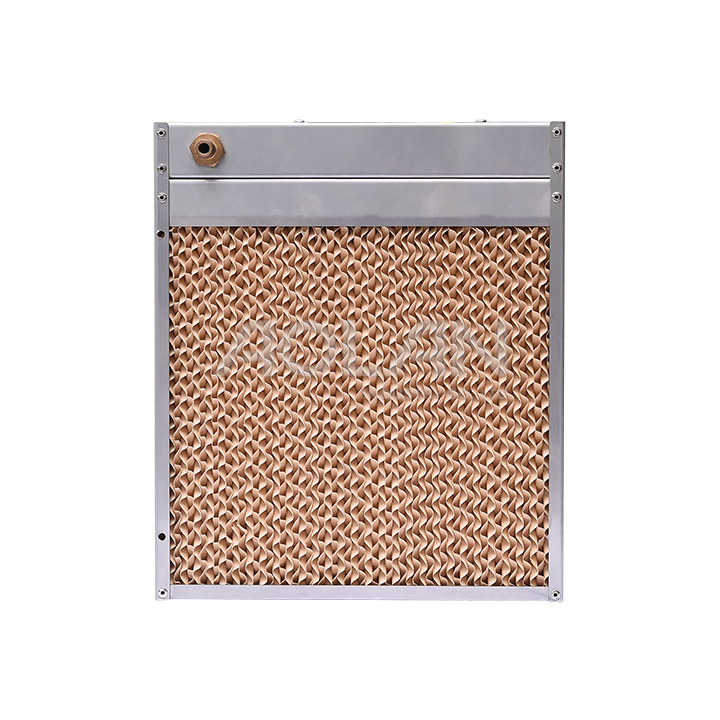

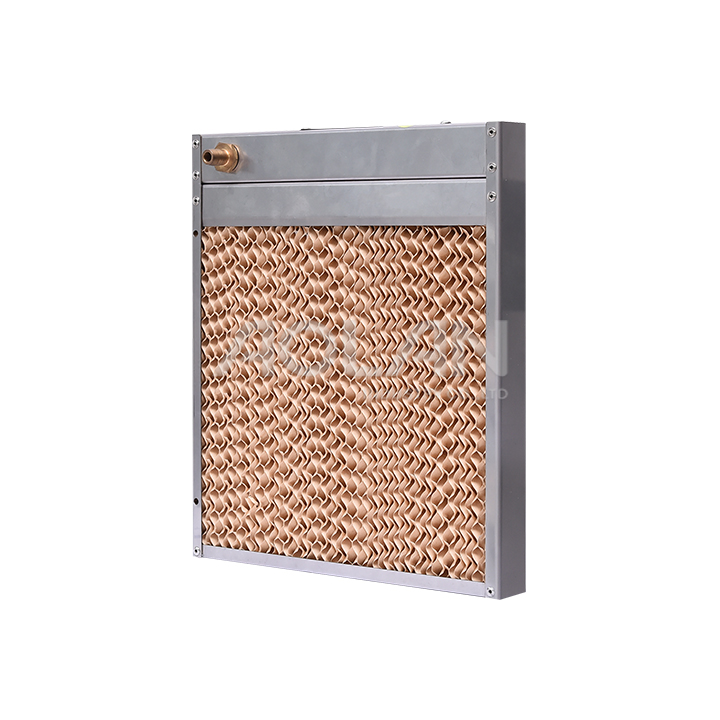

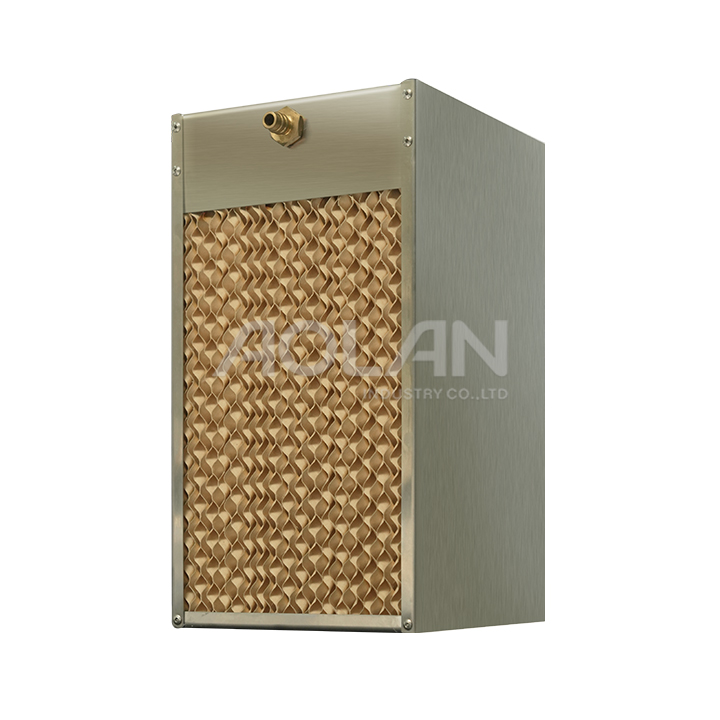

A complete humidifying and cooling unit — wet film, water distributor and outer frame — built from stainless steel and rust-resistant parts. It can replace electrode or electric-heated humidifiers, and can also be used for air pre-cooling or cooling alone.
Applications
Features
- Imported long-fiber wet film: 250% absorption, 95% efficiency
- 304 stainless steel or hot-dip galvanized frame and tray
- CNC-drilled water distribution pipe, no burrs
- Factory leak-tested and dried
- Countersunk riveting, scratch-free surface
- Copper water distributor with PVC fittings
Optional functions
- Group control of up to 40 units
- Water softening system
- Descaling, filtration and sterilization
- Fire curtain in polymer or glass fiber
- Frame in stainless steel, aluminum or galvanized steel
Specifications
| Model (single module) | Humidifying (kg/h) | Pad width (mm) | Pad height (mm) | Pad thickness (mm) |
|---|---|---|---|---|
| 5070 | ≤160 | ≤1100 | ≤2000 | ≤400 |
| 5090 | ≤160 | ≤1100 | ≤2000 | ≤400 |
| 6090 | ≤160 | ≤1100 | ≤2000 | ≤400 |
| 7090 | ≤160 | ≤1100 | ≤2000 | ≤400 |
Specific performance, dimensions and non-standard customization are available from our technical team.
How it works
