Solar-Powered Series

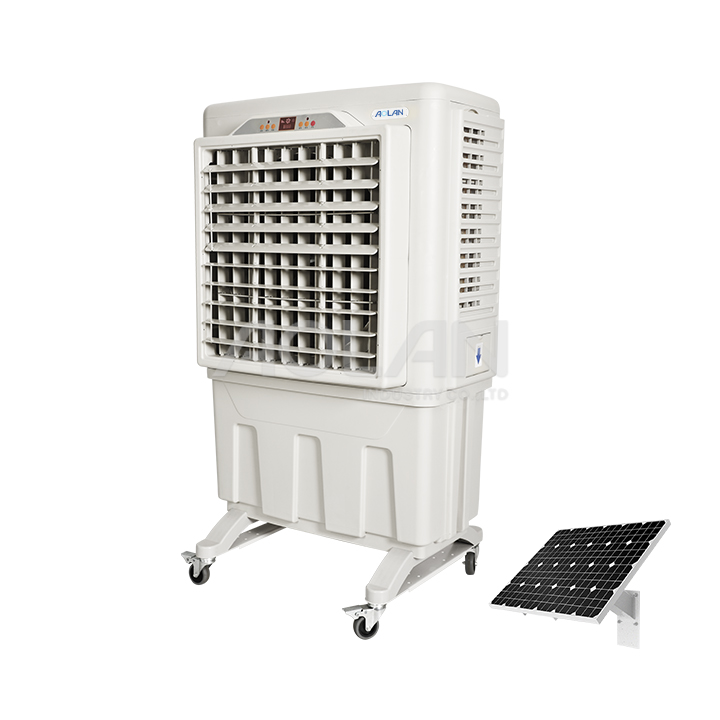

The Solar-Powered Series Evaporative Air Cooler combines eco-friendly solar energy use with high-efficiency cooling. It features a galvanized sheet body for durability, a brushless DC motor with variable speeds, low noise, and an 82% evaporative efficiency. The unit includes LCD and remote control operation, smooth water distribution, and energy-saving benefits over traditional air conditioning. Ideal for cost-effective and sustainable cooling solutions.

Category:

Characteristics

1.Galvanized sheet body, long-time life

2.LCD and Remote control, easy for operation

3.Brussless DC motor, Continuously Variable speeds, soft wind, low noise, large air flow, fresh and comfortable air and function of water lack protection.

4.Using high efficiency evaporative cooling pads with best cooling effects, the evaporation efficiency reaches to 82%

5.Using auto-control water system with open-type water distribution, water flow is smooth and not easy to block.

6.Compared to conventional compressed central air cons, less investment, lower energy consumption.

7.Compared to conventional air cons, cool air enters with hot air exhausted which allows fresh cool air inside all the time.

Specification

DC24V AC
   Model/Specs AZL03-ZC10AZ AZL06-ZC10BD
AZL06-ZC10BDA		 AZL06-ZY10GD
AZL06-ZY10GDA		 AZL06-ZC13A AZL06-ZC13B
   Electrial Source DC DC only
DC and AC		 DC only
DC and AC		 110/60 220/50(V/Hz)
1-phase		 110/60 220/50(V/Hz)
1-phase
   Power (kW) 0.3 0.2 0.2 0.15/0.09/0.06 0.15/0.09/0.06
   Rated Current (A) 5.5 7 7 1.25/0.95/0.8 1.25/0.95/0.8
   Airflows (m³/h) 3000 6000 6000 6000 6000
   Fan Type Axial Axial Axial Axial Axial
   Fan Speed Continuosly  Variable Continuosly  Variable Continuosly  Variable 1-phase, 3-speed 1-phase, 3-speed
   Pressure (Pa) 67 60 60 60 60
   Vent Size (L*W) (mm) 433*304 489*400 540*540 489*400 489*400
   Noise (dB(A)) ≤59.1 ≤68 ≤68 ≤68 ≤68
   Dimension (L*W*H) (mm) 600*810*625 795*978*937 795*978*937 750*978*937 795*978*937
   Pad Size (L*W*H) (mm) 240*420*80 635*670*100
495*132*50		 635*670*937
495*132*50		 635*670*100 635*670*100
495*132*50
   Net Weight (±3Kg) 80 29 29 29 31
   Operatlon Weight (kg) 63 69 99 69 71
   Controller LED Remote LED Remote LED Remote LED Remote LED Remote
   Pre-dust Fi;ter √ √ √ √ √
   Pre-dcooling Optional Optional Optional Optional Optional
   QTY/Full (40HQ) 170 116 132 129 116
