Features
1.Different fan speeds for choice: 1-phase variable-speed, 3-phase 1-spped or 2-speed.

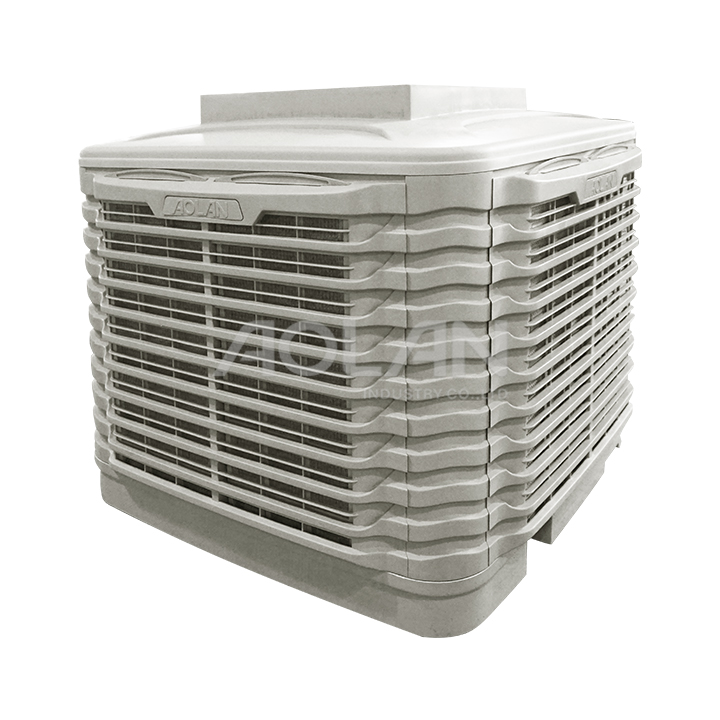

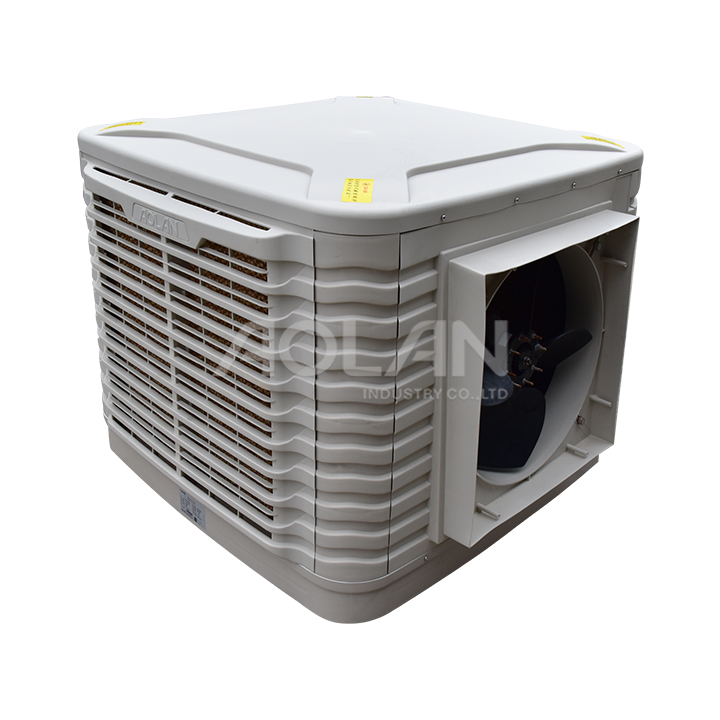

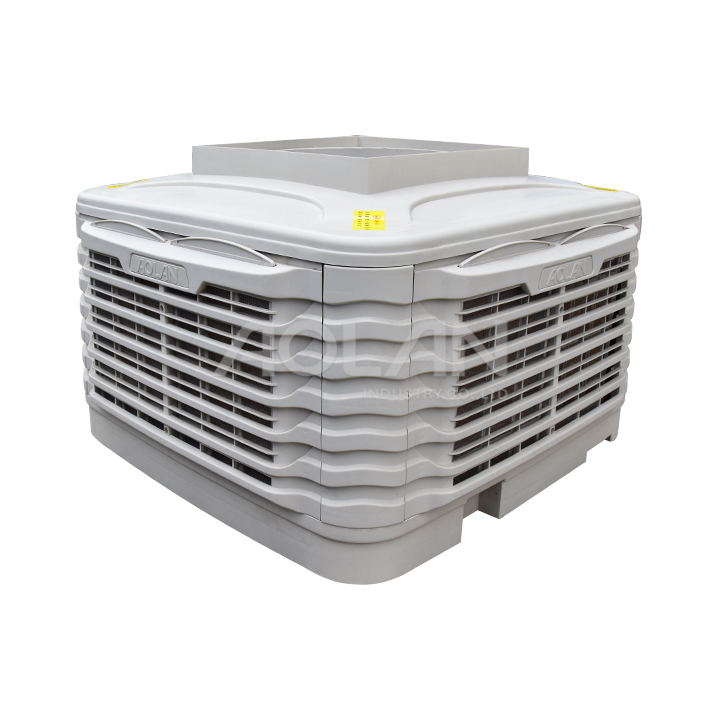

2.Different air discharges (top, down or side) meet different installation requirements.
3.Using LCD or standard controller, easy to operate.
4.Materials for casing are anti-UV, anti-corrosion, anti-aging, and no deformation.
5.Fan impeller is special designed to allow large airflow but lower noise.
6.Motor applied is moistureproof, waterproof with tiny temperature rise.
7.Using automatic control water system and open type water distributor, water can flow smoothly and distributor is not easy to block.
8.Using high efficient evaporative pads with large evaporation capacity, good cooling efficiency and easy to clean.
Application
Small and medium-sized industrial plants, commercial places, communication rooms, semi-open places, outdoor exhibition places, etc.
Specification
| Model/Specs | AZL18-ZX10J AZL18-ZS10J AZL18-ZC10J |
AZL18-ZX10JG AZL18-ZS10JG AZL18-ZC10JG |
AZL18-ZX31J AZL18-ZS131J AZL18-ZC131J |
AZL10-ZX10J AZL10-ZS10J |
| X-down discharge, S-up discharge, C-side discharge | ||||
| Electrial Source | 110/60 220/50(V/Hz) 1-phase | 110/60 220/50(V/Hz) 1-phase | 110/60 220/50(V/Hz) 3-phase | 110/60 220/50(V/Hz) 3-phase |
| Power (kW) | 0.75 | 0.75 | 0.75 | 0.42.8 |
| Rated Current (A) | 5.6 | 4.0 | 2.3 | 2.8 |
| Airflows (m³/h) | 18000 | 18000 | 18000 | 18000 |
| Fan Type | Axial | Axial | Axial | Axial |
| Fan Speed | Multi-speed, Silicon Control | Multi-speed, Inverter | 3-phase, 1-speed | Multi-speed, Silicon Control |
| Pressure (Pa) | 160 | 160 | 160 | 80 |
| Vent Size (L*W) (mm) | 555*555(down) 555*555 (up) 614*614 (side) |
555*555(down) 555*555 (up) 614*614 (side) |
555*555(down) 555*555 (up) 614*614 (side) |
555*555 |
| Noise (dB(A)) | ≤65 | ≤65 | ≤65 | ≤65 |
| Dimension (L*W*H) (mm) | 1030*1030*883 (down) 1030*1030*968 (up) 1030*1030*883 (side) |
1030*1030*883 (down) 1030*1030*968 (up) 1030*1030*883 (side) |
1030*1030*883 (down) 1030*1030*968 (up) 1030*1030*883 (side) |
1030*1030*883 (down) 1030*1030*968 (up) |
| Pad Size (L*W*H) (mm) | 930*738*100 | 930*738*100 | 930*738*100 | 930*738*100 |
| Net Weight (±3Kg) | 49 (down) 53 (up) 55 (side) |
49 (down) 53 (up) 55 (side) |
49 (down) 53 (up) 55 (side) |
52 (down) 53 (up) |
| Operatlon Weight (kg) | 67 (down) 71 (up) 73 (side) |
67 (down) 71 (up) 73 (side) |
67 (down) 71 (up) 73 (side) |
70 (down) 71 (up) |
| Controller | LED Control | LED Control | LED Control | LED Control |
| Pre-dust Fi;ter | Optional | Optional | Optional | Optional |
| Pre-dcooling | Optional | Optional | Optional | Optional |
| Group-control | Optional | Optional | Optional | Optional |
| Tem&hum Control | Optional | Optional | Optional | Optional |
| QTY/Full (40HQ) | 44 | 44 | 44 | 44 |
| QTY/SKD (40HQ) | 80 (down)/75 (up)/70 (side) | 80 (down)/75 (up)/70 (side) | 80 (down)/75 (up)/70 (side) | 80 (down)/75 (up)/70 (side) |
Note: The actual airflow is related to the outlet pressure (air duct resistance). For details, please consult the company’s technical department.
